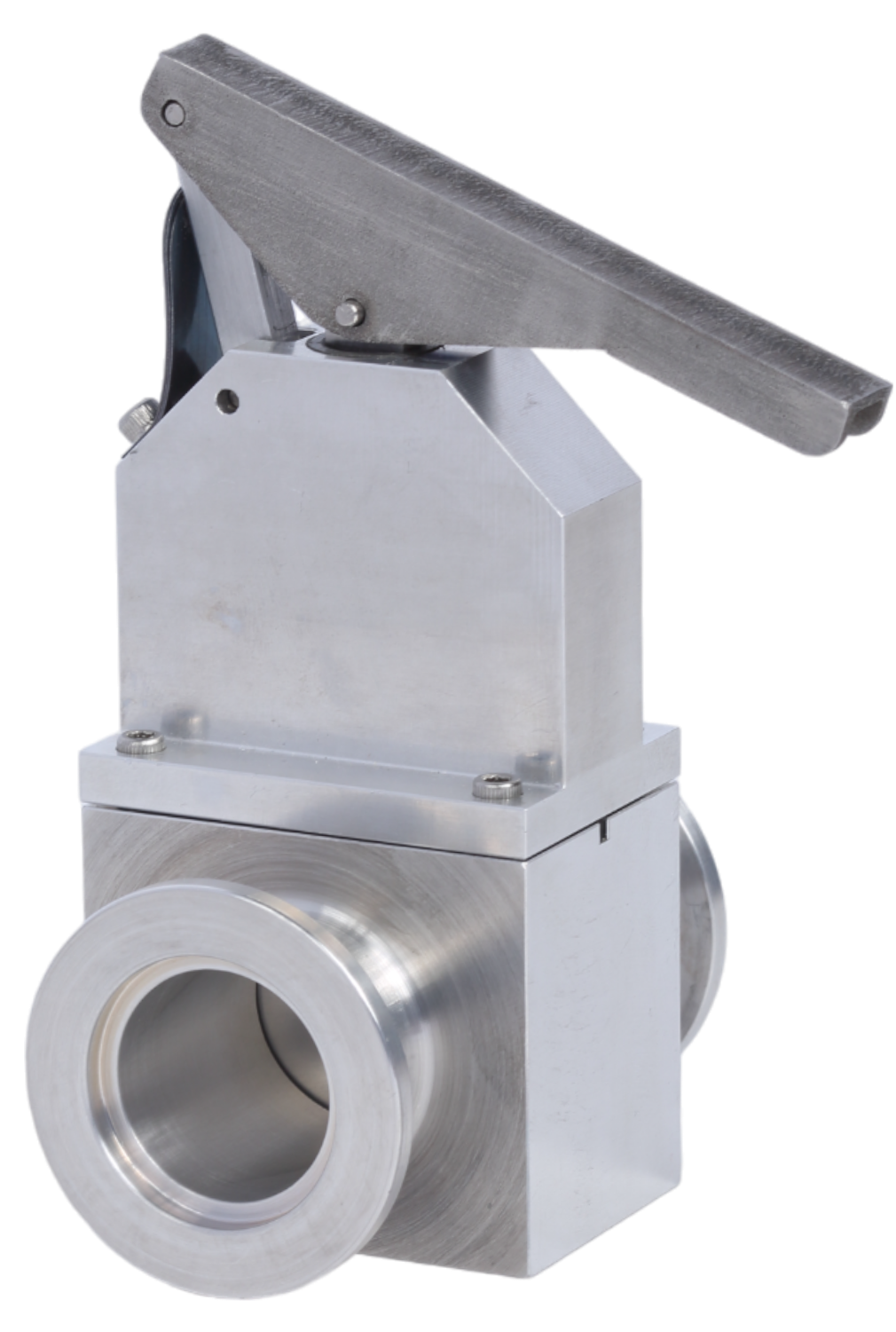

Toggle Gate Valve
Toggle Gate Valve - Image 2

Toggle Gate Valve

CALL FOR QUOTE

Description

The Toggle Gate Valve works with handle locking mechanism which was to provide reliable gate sealing without any friction. The locking mechanism locks the gate in the closed position. Compact and small footprint, the Gate Valve has proven its outstanding reliability.

    Specifications

    • Vacuum range1 x 10-7 Torr
    • Pressure range2 ATM
    • Leak test1 x 10-9 mbar ls
    • Bake temperature120 oC
    • SealViton O-ring
    • Life1M Cycle

    Toggle Gate Valve

    Size A (inch) B (inch) C (inch) D (inch)
    KF16 3.32 1.87 2.76 6.50
    KF25 3.32 1.87 2.76 6.50
