Stainless All-Metal Valve
Stainless All-Metal Valve - Image 2

Stainless All-Metal Valve

CALL FOR QUOTE

Description

All Metal Valve uses oxygen-free copper gasket as dynamic seal to press against a conical knife edge on the opposing part, thus forming an all metal seal./p> Copper gasket has a life of few hundred uses. Gasket replacement is easily done by a screw driver.

    Specifications

    • Vacuum Range1x10-9torr
    • Helium Leak Test1x10-9torr, cc/sec, He
    • Bake Temperature400ºC (open), 300ºC (close)
    • MaterialStainless Steel body
    • SealCopper Gasket

    Stainless All-Metal Valve

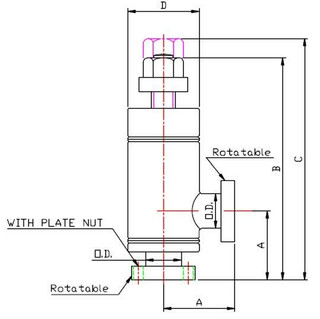

    Port Size OD A B C D
    CF1.33 19.05 38.10 121.20 131.00 38.10
    CF2.75 38.10 62.50 170.00 187.00 54.00
    CF4.50 63.50 105.00 266.00 294.00 76.20
