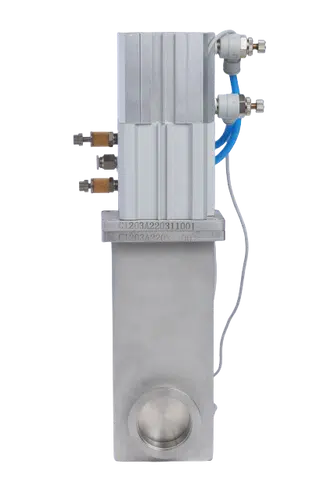

Pneumatic Industrial Gate Valve

Pneumatic Industrial Gate Valve

CALL FOR QUOTE

Description

Plug-in compatible with standard valves; easily replace valves in the field. Ultra clean for use in a clean vacuum environment.

    Specifications

    • Vacuum range1 x 10-9 Torr
    • Leak test1 x 10-9 atm cc/sec of He
    • Bake temperature80-120 oC Fluctuating
    • Life100,000 Cycle
    • SealViton (FKM)
    • Time from open-close< 1.5 sec
    • Position Indicator28 VDC or 115 VAC
    • MaterialStainless Steel

    Pneumatic Industrial Gate Valve

    PORT A (inch) B (inch) C (inch) D (inch)
    1.0" 2.44 1.34 11.18 2.52
    1.5" 2.99 1.34 12.40 2.52
    2.0" 3.47 1.34 12.81 2.52
    2.5" 4.33 1.34 14.39 2.83
    3.0" 5.12 1.42 17.60 3.31
    4.0" 5.67 1.57 24.21 2.95
    6.0" 7.91 1.77 30.37 2.95
    8.0" 10.16 1.85 35.33 3.74
    10.0" 12.20 2.15 37.28 4.61
    12.0" 16.73 3.07 52.32 4.53
