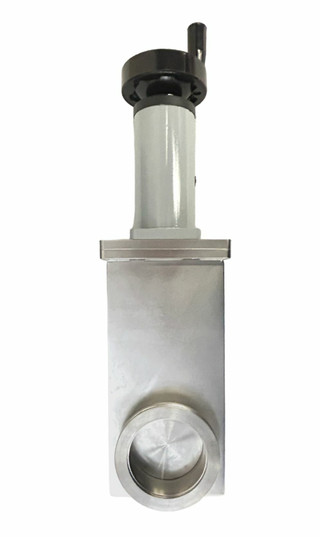

Manual Industrial Gate Valve

Manual Industrial Gate Valve

CALL FOR QUOTE

Description

Plug-in compatible with standard valves; easily replace valves in the field. Ultra clean for use in a clean vacuum environment.

    Specifications

    • Vacuum range1 x 10-9 Torr
    • Leak test1 x 10-9 atm cc/sec of He
    • Bake temperature80-120 oC Fluctuating
    • Life100,000 Cycle
    • SealViton (FKM)
    • Time from open-close< 1.5 sec
    • Position Indicator28 VDC or 115 VAC
    • MaterialStainless Steel

    Manual Industrial Gate Valve

    PORT A (inch) B (inch) C (inch) D (inch)
    1.0" 2.44 1.34 10.94 2.48
    1.5" 2.99 1.34 12.30 2.48
    2.0" 3.47 1.34 12.85 2.48
    2.5" 4.33 1.34 14.88 3.94
    3.0" 5.12 1.42 18.17 3.94
    4.0" 5.67 1.57 19.69 3.94
    6.0" 7.91 1.77 25.69 3.94
    8.0" 10.16 1.85 30.06 3.94
    10.0" 12.20 2.15 37.70 4.92
    12.0" 16.73 3.07 46.91 4.92
