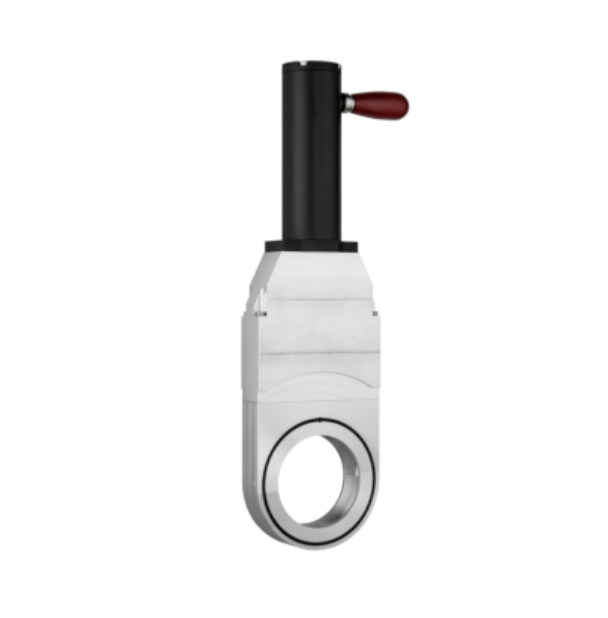

Manual Aluminum Gate Valve
Manual Aluminum Gate Valve - Image 2

Manual Aluminum Gate Valve

CALL FOR QUOTE

Description

High quality aluminum Gate Valve that the body is machined from a solid block, resulting in better rigidity and strength. Light weight design. Position indicator optional.

    Specifications

    • Vacuum range8 x 10-9 Torr
    • Leak test1 x 10-9 atm cc/sec of He
    • Bake temperature100 oC
    • Life250,000 Cycle
    • Time from open-close< 1.5 sec
    • Operating temperatureup to 100oC
    • Position Indicator28 VDC or 115 VAC
    • MaterialAluminum

    Manual Aluminum Gate Valve

    PORT A (inch) B (inch) C (inch) D (inch)
    1.5" 2.36 9.96 2.52 2.20
    2.0" - - - -
    3.0" 1.26 16.52 4.65 52
    4.0" 1.26 18.8 5.51 52
